**Please download sample below for complete step by step guide**
The Gate 1 ceiling contains 3 LED slopes combining fora total resolution of3840x12528.
Slope A, the longest and closest section to Gate 1 entry doors, operates at a resolution of 3840x7128.
Slope B, the middle section, operates at a resolution of 3840x4104.
Slope C, the return "waterfall" section, operating aresolution of 3840x1296.

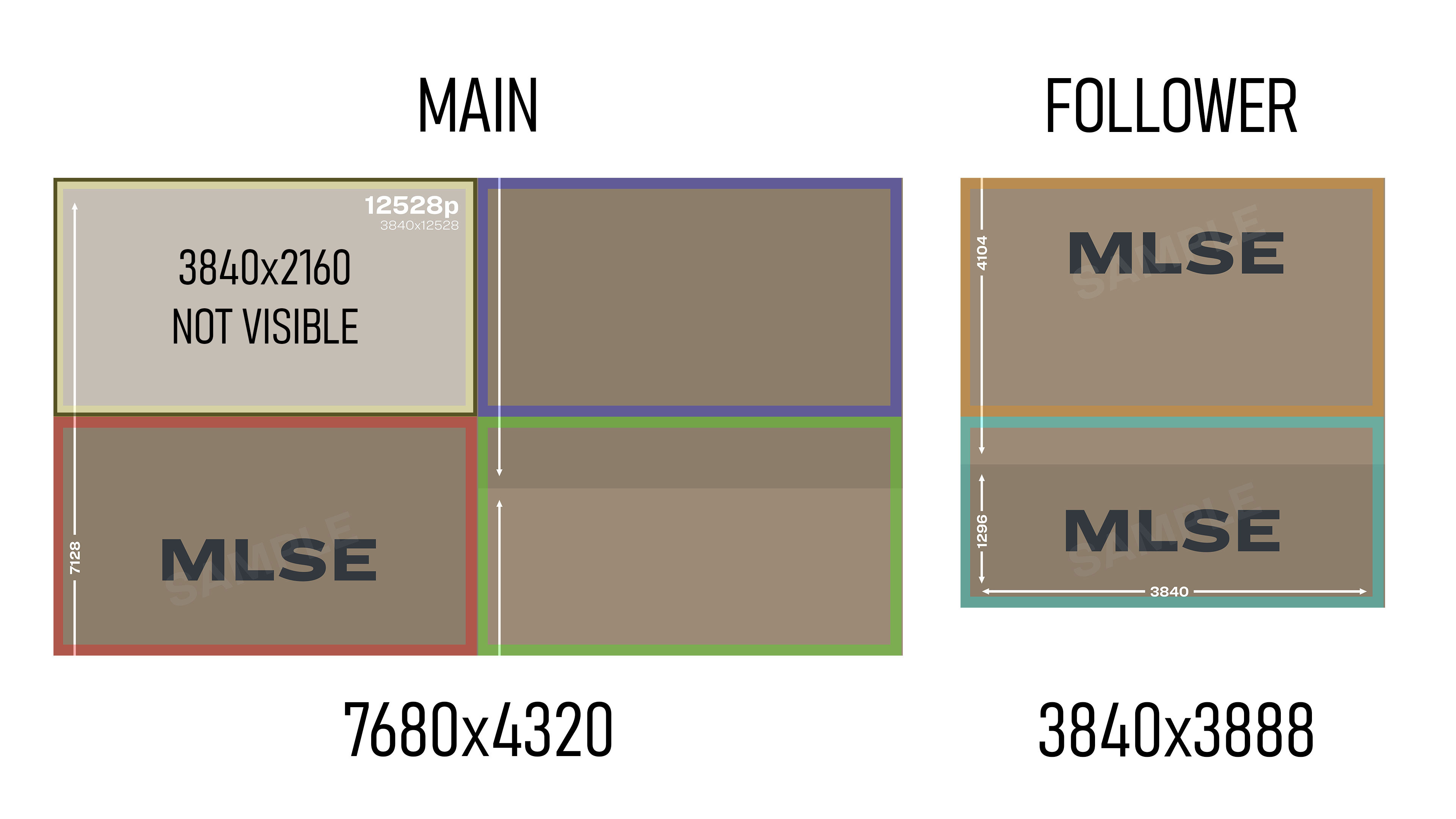

In order to achieve dominance, content must be built at thetotal resolution 3840x12528, then cut and rendered into 2 separate files. The upper portion must be 3840x8640, and is referred to as the MAIN file.The bottom portion must be 3840x3888, and as referred to as the FOLLOWER file.
The MAIN upper portion then needs to be cut inexactly half, with the lower half then stacked beside the top half. Startingwith the 3840x8640 file, the new file will then be rendered out to 7680x4320. This ensures it fits within a 16:9 8K canvas.
Final file delivery will then be two files. The (1) MAIN 7680x4320 file, and (2) FOLLOWER 3840x3888 file.
** NOTE : To begin the 2026-27 Season, the first 3840x2160 region of the MAIN build file will not be visible and is concidered a dead zone for content. Content must still be built to spec above, however this region will not be visible Please reference the Build and Render sample files.
